Here what in the manual:
The Bars Widget provides another indication of the measured colour error, relative to the target colour space.
In its default mode, the bars show any colour error based on R, G, and B values, with the displayed error a combination of gamut and luminance, with the 4th bar showing luminance independently, and the 5th, chequered, bar show the dE error.
In addition to the height of the bars defining the colour error, the intensity of the bar's colour increases with a greater error value. The Bars Widget auto zooms resolution, depending on the measured error value.I like that autozoom on colour errors, but what happens is that, depending of colour error, also dE bar is scaled. Autozoom values are 1, 2, 5 and 10. dE bar, with no zoom, is cut at 2.1, corresponding to the beginning of perceived colour error. As is also zoomed, it is cut at 2.1 (AutoZoom=1), 1.05 (AZ=2), 0.42 (AZ=5), 0.21 (AZ=10).
I appears me that in this way, the original intent of the dE bar (i.e. giving a visual indication of the perceived error during manual measures/measures inspecting) is lost.
Another point, maybe a bug:
It is said:

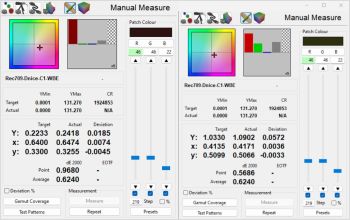

In addition to the height of the bars defining the colour error, the intensity of the bar's colour increases with a greater error value. Have a look to the attached snapshot:
Look also at the end, where you can see also the correct RGB level
I see the red bar less intense depending on the red colour error. I cannot tell if it is a manual error, or if it is intended, or If I am missing something
