Hardware Options for JVC DLA-Z1 + Lumagen Radiance Pro


Author LeFric
ZRO
#1 | Posted: 18 Nov 2022 12:57

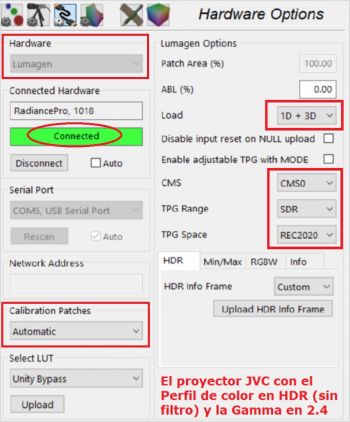

I would like to know if the options marked in the image are the correct ones for a SDR2020 calibration in CMS0 (for SDR) with Lumagen.



Thanks

Author Steve

INF
Male
#2 | Posted: 18 Nov 2022 13:02
I would suggest communicating with Lumagen, as the controls are theirs, and are not specific to ColourSpace.

Steve
Steve Shaw
Mob Boss at Light Illusion

Author gordonF
ZRO
#3 | Posted: 18 Nov 2022 17:29
Yes those are fine for an SDR 2020 calibration. If you are going to use this for a CMS for HDR Dynamic tone mapping in the Pro I would suggest you set the CMS to their DCI P3 colour space (ColourSpace will not see that option and fill in that box correctly, but it is irrelevant). Then create your LUT targeting DCI P3 D65 white point and gamma 2.4. Make sure the option for colour remapping in the CMS bank is OFF while you do any measurements for LUT then once LUT is created turn it to ON to map 2020 and 709 to P3.
