Example user Patch Sequences for ColourSpace/LightSpace


Author Steve

INF
Male
#1 | Posted: 20 Feb 2014 16:49 | Edited by: Steve
Optimised' Patch Sequences for used with ColourSpace/LightSpace calibration.
(These are just example patch sequences, and are 'Sequential' based, rather than the more desirable Anisometric sequence.)

These sequences can use less patches to generate a higher level of final calibration accuracy.

The sequences can be downloaded via the http://www.lightillusion.com/downloads.html page of the website.

cub21tub41-3.csv which is the standard 21^3 profile, but with enhanced grey scale precision using 41^3 grey axis and surrounding 3 points.

cub17tub65-3.csv which is the standard 17^3 profile, but with enhanced grey scale precision using 65^3 grey axis and surrounding 3 points.

cub17tub33-3.csv which is the standard 17^3 profile, but with enhanced grey scale precision using 33^3 grey axis and surrounding 3 points.

bcc17tub65-3.csv which is theoretically equivalent to a 33^3, but with enhanced grey scale precision using 65^3 grey axis and surrounding 3 points.

bcc11tub41-3.csv which is theoretically equivalent to a 21^3 cube, with a 41^3 equivalent grey axis and surrounding 3 points.
In a perfect world this would be equivalent to the results from cub21tub41-3.csv sequence...

Sudo_Ramdom_Optimised which is a patch sequence developed to randomise the patch spacing, maximising colour granularity coverage, with a focus on the grey scale.

Steve
Steve Shaw
Mob Boss at Light Illusion

Author Steve

INF
Male
#2 | Posted: 2 Oct 2020 12:46 | Edited by: Steve
A new download has been added to the http://www.lightillusion.com/downloads.html page of the website.
The new download is a selection of example Preset Patch Lists for use with Manual Measure.

The Preset Patch Lists include examples of different Presets for ColourSpace, plus an example Preroll Patch Sequence.

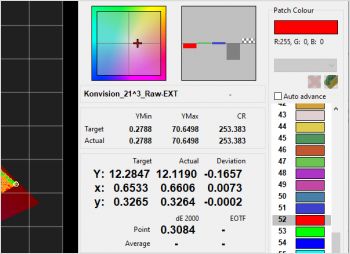

Preset Patch Sets

Any User Generated Patch Set can be used within ColourSpace Manual Measure, up to a maximum of 256 patches.
The examples provided here can be used as a basis for any User Generated set.

Steve
Steve Shaw
Mob Boss at Light Illusion

Author tsanga
ZRO
#3 | Posted: 13 Jan 2021 18:54
I would like to have color primary/secondary patches at 75% intensity/75% saturation.

Can you confirm if I have the RGB values correct?

1,191,191,191,75% Gray
2,174,51,51,75%/75% Red
3,71,186,71,75%/75% Green
4,49,49,128,75%/75% Blue
5,92,186,186,75%/75% Cyan
6,164,75,164,75%/75% Magenta
7,189,189,85,75%/75% Yellow

Thank you!

Author ConnecTED
DPS
#4 | Posted: 13 Jan 2021 20:40
Hi,

I have patchlists, which I provide to the PGenerator edition of my calibration disk.

They do not match the targets you have posted.

It's available Ted's LightSpace CMS Calibration Disk patterns for PGenerator users:

https://displaycalibrations.com/pgenerator_order.html

It includes all brightness patterns without letter indicators, which are more efficient than the 'text info'' versions for OLED/Projector users.

https://www.avsforum.com/threads/dedicated-raspberry-pi-pgenerator-thread-set-up-configuration-updates-special-features-general-usage-tips.3167475/post-60127123

It's including 162 patterns, static or flashing bars:

https://displaycalibrations.com/patterns_overview.html

You can find more details here:

https://www.avsforum.com/threads/dedicated-raspberry-pi-pgenerator-thread-set-up-configuration-updates-special-features-general-usage-tips.3167475/post-60090107

It has custom images upload also:

https://www.avsforum.com/threads/dedicated-raspberry-pi-pgenerator-thread-set-up-configuration-updates-special-features-general-usage-tips.3167475/page-10#post-60136175

Using a 16GB SD, it has space to upload ~1000 TGA images.

While PGenerator is connected with ColourSpace/LightSpace, you can inject any pattern (with static or flashing bars), and PGenenerator will stay connected to each software.

When you generate a patch from the calibration software, it will render it and override Ted's pattern.

Users of Ted's calibration disk will get specific patchsets for ColourSpaceZRO or other paid license levels:



These patchsets will make it possible for Ted's users of the PGenerator edition or another format to measure the same chapters as available to the calibration disk.

These targets will match HCFR or CalMAN measurements also.

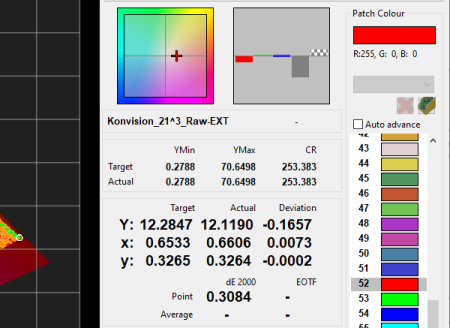

Use Profiling -> Manual Measure -> Open, and load these patchsets.

Select Patchscale 16 (Min) 235 (Max) to ColourSpace Options for the PGenerator to reproduce them correctly.


Author tsanga
ZRO
#5 | Posted: 14 Jan 2021 15:56
Thank you Ted. I purchased your calibration disk.
